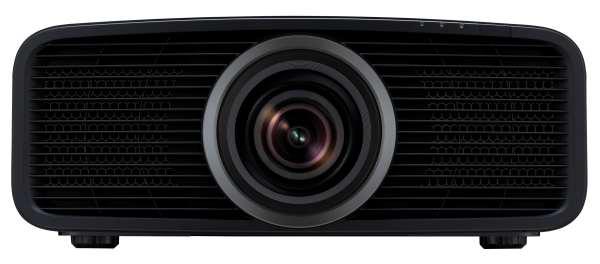

From JVC — The DLA-NZ700 is the world's smallest 4K D-ILA projector available today. It uses JVC's proprietary BLU-Escent Laser light source with 2,300 lumens and third-generation (Gen3) Native 4K D-ILA devices to display 4,096 x 2,160 pixel images and an 80,000:1 native contrast ratio. This projector features Gen2 Frame Adapt HDR to get the most out of HDR content, and Vivid mode to display SDR content, such as animations, to satisfy a variety of users.
- Infinite Black dynamic contrast
- 101-step laser light control by slider adjustment
- 80 mm fully motorized 4K lens with 1.6X zoom, 70% vertical and 28% horizontal shift ranges
- High contrast Optical Block
- Two 32Gbps 4K/60p HDMI/HDCP 2.3 inputs
- Second-generation (Gen2) Frame Adapt HDR dynamic tone mapping
- DML (Display Mastering Luminance) adjusts and sets the dynamic range for a better HDR experience
- Picture mode "Vivid" for projecting animated works and game CGs in SDR format
- Wide color gamut with Cinema Filter: BT.709 and DCI-P3
- ISF Certified plus JVC Auto Calibration
Product Downloads
Helpful Links
Get an E-Z Quote
Get a Repair
Buy Local
JVC DLA-NZ700 Projector Specifications
Best of Show Award honorees are selected by ProjectorCentral editors to recognize unusual innovation or value. Read More
- Brightness
- 2,300 Lumens (ANSI)1
- Resolution
- 4096x2160
- Aspect Ratio
- 1.89:1 (4K HD)
- Contrast
- 80,000:1
- Display Type
- 0.69" D-ILA x 1
- Color Processing
- 10-bit
- Video Modes
- 720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 2160p/24, 2160p/60, 576p, 4096p/24, 480p
- Data Modes
- MAX 4096x2160
- Lamp Type
- Laser Phosphor
- Included Lens
- 1.6x Powered zoom , Powered focus
- Optional Lenses
- No
- Lens Shift
- Horizontal +/-28% & Vertical +/-70%
- Throw Distance
- 8.9' - 18.7' Calculate Throw Distance
- Image Size
- 60.00" - 200.00"
- Throw Ratio
- 1.28:1 - 2.05:1
- Projector Placement
- For a diagonal screen, place the projector lens between 9'-4" and 14'-11" from the screen.
- Digital Keystone
- Vertical only
- Projector Size
- 7.16" x 17.72" x 18.88"
- Weight
- 32.6 lbs
- Internal Speakers
- No
- Power
- 280 Watts 100V - 240V
- Connection Panel
-
HDMI 2.3 (HDCP) x 2Network: RJ-45USB
- Features
-
Frame InterpolationLens MemoryInfinite BlackDynamic Tone MappingHDR10+
